Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: STS
  • Model Number: STS-5M-180M-72
  • Material: Monocrystalline Silicon
  • Size: 1580*808*40mm
  • Number of Cells: 72
  • Max. Power: 180W
  • Frame: Aluminium alloy (Silver color)
  • Workmanship: Tempered glass laminated

Packaging & Delivery

Packaging Details Carton box, loaded on pallet or wooden case.





Product Description





High efficiency 180W pv solar module

Efficiency 180W solar module

1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.

2. High efficient, high reliable solar cells ensure our product output stability.

Benefits of solar module

1. Manufactured in an ISO9001:2008 certified plant

2. High efficiency, high safety, high reliability

3. Output power tolerance of +/-3%

Warranty

1. 5-years limited warranty on materials and workmanship

2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%

Specifications of solar module

Model Type

STS-5M-180M-72

Peak power

180W

Cell type

Mono Crystalline Silicon,125×125mm

Number of cells

72 cells in series

Weight

15kg

Dimensions

                   1580*808*40

Maximum power voltage(Vmp)

36.0V

Maximum power current(Imp)

5.0A

Open circuit voltage(Voc)

43.9V

Short circuit current(Isc)

5.3A

Maximum system voltage

DC 1000V

Temp.Coeff.of Isc(TK Isc)

                    +0.04%/°C

Temp.Coeff.of Voc(TK Voc)

-0.30%/°C

Temp.Coeff.of Pmax(TK Pmax)

-0.44%/°C

Normal Operating Cell Temperature

45±2°c

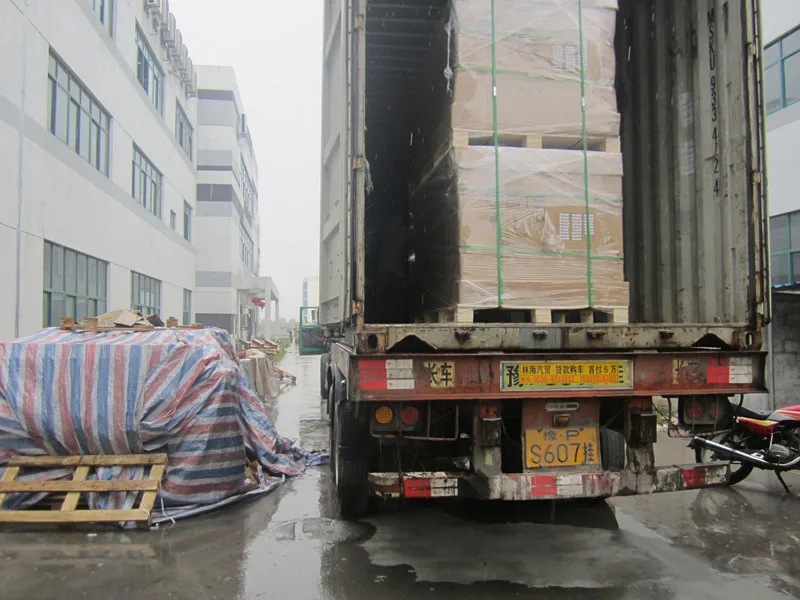

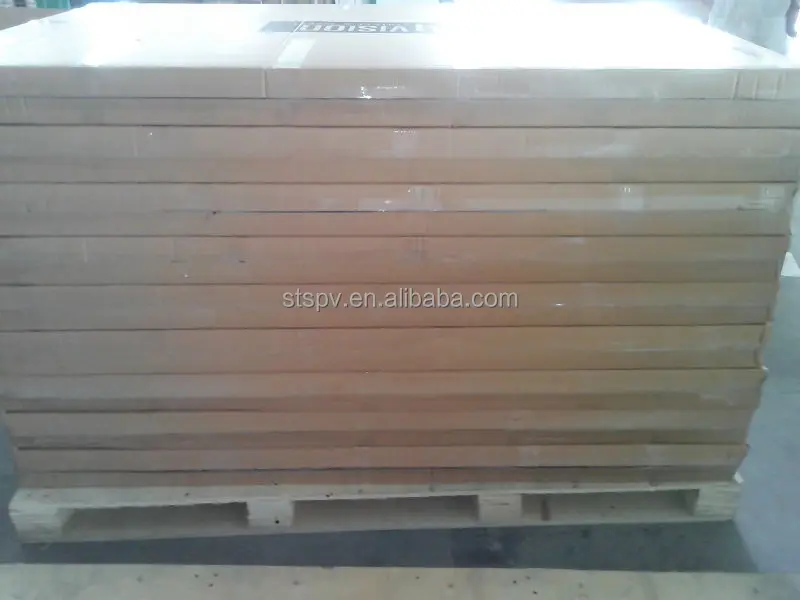

Packaging & Shipping

Carton box, loaded on pallet or wooden case.





Our Services

1.Reply your inquiry in 24 working hours

2.Customized design is available, OEM is welcomed
3.Delivery the goods to our customer all over the world with speed and precision
4.Offer the customer the lowest price with high quality solar modules
