Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: STS
  • Model Number: STS-5M-(170-200)M-72
  • Material: Monocrystalline Silicon
  • Size: 1580*808*40
  • Number of Cells: 72
  • Max. Power: 170w-200w
  • Color: black
  • Frame: aluminum

Packaging & Delivery

Packaging Details Carton box, loaded on pallet or wooden case
Delivery Time According to each ord







Product Description

170w-200w high efficiency solar module

Efficiency mono solar panel

1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.

2. High efficient, high reliable solar cells ensure our product output stability.

Benefits of solar modules

1. Manufactured in an ISO9001:2008 certified plant

2. High efficiency, high safety, high reliability

3. Output power tolerance of +/-3%

Warranty

1. 10-years limited warranty on materials and workmanship

2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%

Specifications of solar panel

Model Type

STS-5M-180M-72

 STS-5M-185M- 72

STS-5M-190M-72

STS-5M-195M-72

STS-5M-200M-72

Peak power

180W

185W

190W

195W

200W

Cell type

Mono Crystalline Silicon,125×125mm

Mono Crystalline Silicon,125×125mm



Mono Crystalline Silicon,125×125mm

Mono Crystalline Silicon,125×125mm



Mono Crystalline Silicon,125×125mm

Number of cells

72 cells in series

72 cells in series



72 cells in series



72 cells in series



72 cells in series



Weight

15.5kg

 15.5kg

15.5kg

15.5kg

15.5kg

Dimensions

1580*808*40mm

 1580*808*40mm

1580*808*40mm

 1580*808*40mm

1580*808*40mm

Maximum power voltage(Vmp)

36.42V

 36.54V

36.66V

36.96V

37.26V

Maximum power current(Imp)

4.94A

5.06

5.18

5.28

5.37

Open circuit voltage(Voc)

44.88V

45.18V

45.38V

45.50V

45.62V

Short circuit current(Isc)

5.44A

5.52A

5.58A

5.63A

5.66A

Maximum system voltage

DC 1000V

DC 1000V

 DC 1000V

 DC 1000V

 DC 1000V

Temp.Coeff.of Isc(TK Isc)

   +0.036%/°C     +0.036%/°C     +0.036%/°C     +0.036%/°C     +0.036%/°C

Temp.Coeff.of Voc(TK Voc)

-0.33%/°C

-0.33%/°C

-0.33%/°C

-0.33%/°C

-0.33%/°C

Temp.Coeff.of Pmax(TK Pmax)

-0.47%/°C

-0.47%/°C

-0.47%/°C

 -0.47%/°C

-0.47%/°C

Normal Operating Cell Temperature

45±2°c

 45±2°c

 45±2°c

 45±2°c

45±2°c

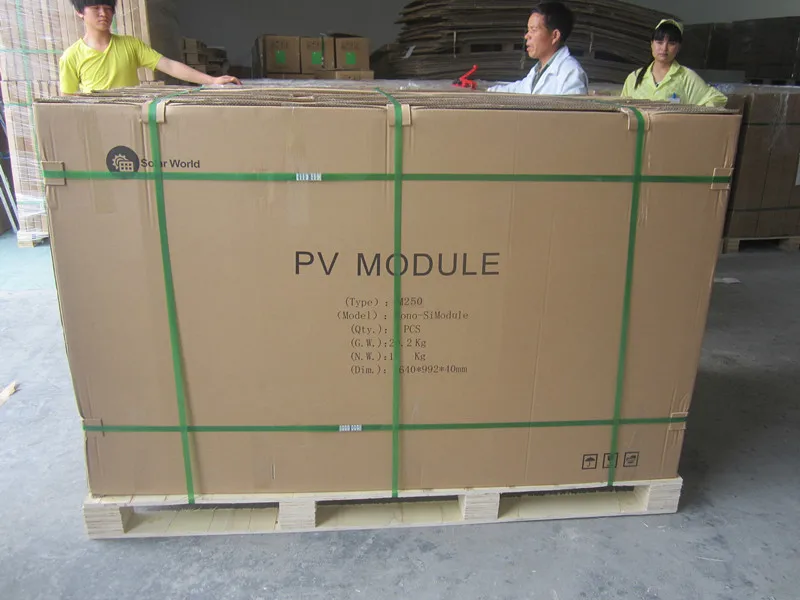

Packaging & Shipping



Carton box, loaded on pallet or wooden case



Our Services



1.Reply your inquiry in 24 working hours
2.Customized design is available, OEM is welcomed
3.Delivery the goods to our customer all over the world with speed and precision
4.Offer the customer the lowest price with high quality solar modules
